Ideal® 83-2241 | Connexion
Ideal® 83-2241 331618

Ideal®

Insulated Ring Terminal

  • loading
  • Manufacturer Package Size: Box of 25
  • Manufacturer: Ideal Industries
  • Brand Name: Ideal®
  • PN: 83-2241
  • PN: 83-2241
  • UPC: 783250489831
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

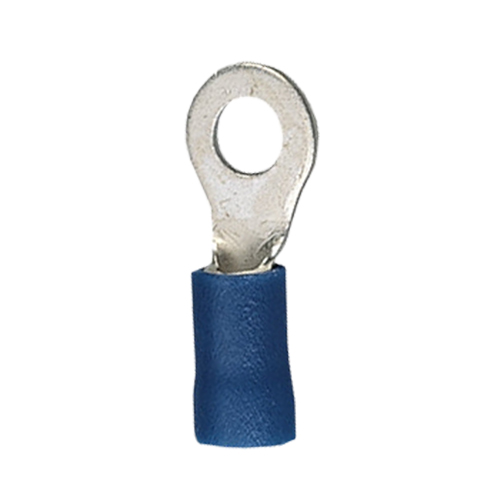

IDEAL® Vinyl Insulated Ring Terminal, 16 to 14 AWG Wire, #10 Stud, Butted Seam Barrel, 0.394 in L Barrel, 0.374 in W Tongue, 600 VAC, 75 deg C, Brass, Tin Plated, Blue, 0.858 in OAL

Insulated terminal consists of a tin plated copper body, a tin plated copper wire support sleeve and a color-coded insulation sleeve.
  • Manufacturer: Ideal Industries
  • Brand: Ideal®
  • PN: 83-2241
  • CX SKU: 331618
  • UPC: 783250489831
  • Type: Ring Terminal
  • Connection Type: Crimp
  • Insulation Type: Vinyl
  • Insulation Color: Blue
  • Wire Range: 16 to 14 AWG
  • Stud Size: #10
  • Barrel Style: Butted Seam
  • Barrel Size : 0.394 in L
  • Tongue Size : 0.374 in W
  • Voltage Rating : 600 VAC
  • Temperature Rating : 167 deg F
  • Material : Brass
  • Finish : Tin Plated
  • Overall Length : 0.858 in
  • Package Quantity : 25 PK
  • pdfCompliance Certificate https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_84_018_Compliance_Certificate.pdf
  • pdfMaterial Composition Declaration https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_84_018_Material_Composition.pdf
  • pdfSpecification Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_83_2121_Specification_Sheet.pdf
  • pdfWarranty https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_83_0131_Warranty.pdf
