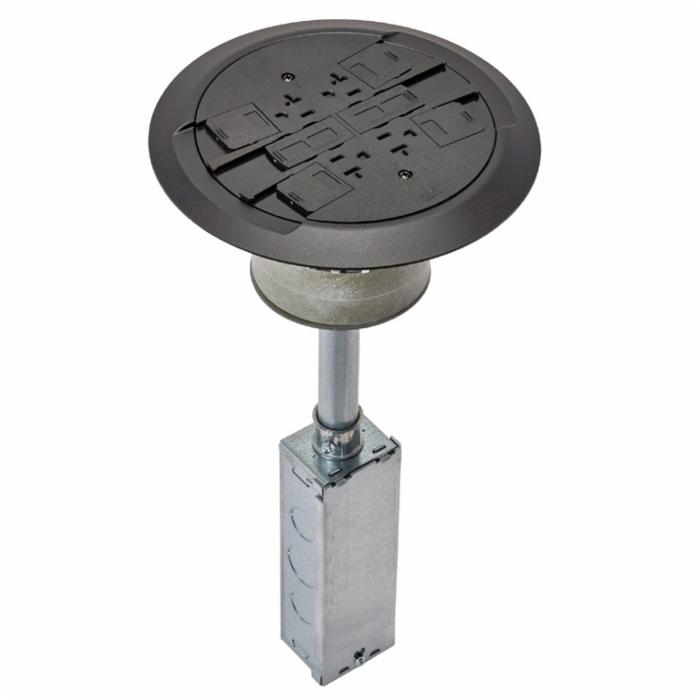

Wiremold® Assembled Poke Through Device, Multi-Service, Series: RC4, 4 in, 1/2 to 3/4 in Knockout, 2 Gang, 24.5 cu-in, Flush Device Type, For Use With: On Tile or Carpet Floor, Black Painted Flange with Black Nonmetallic Cover, 8-1/4 in Dia x 16-3/8 in L,
- (4) Prewired 20A duplex receptacle can be wired as standard duplex or isolated ground
- Includes Ortronics TracJack mounting adpaters, Ortronics SII communication housing and Wiremold Open System unloaded adapters to accept four discrete keystone connectors from most manufacturers
- Not designed to work with bare concrete or terrazzo
- Assembled with scrub water gasket, for use on tile or carpet floors
- Floor covering thickness 1/8 inch minimum
- RC4 Series poke-thru devices require a 4 inch diameter hole
-
Manufacturer: Legrand
-
Brand: Wiremold®
-
PN: RC4ATCBK
-
CX SKU: 381302
-
UPC: 786564131540
- Type: Surface Poke Through
- Device Type: Fire-Rated
- Component Type: Assembled Unit With Junction Box
- Series: RC4ATC
- Hole Size: 4 in
- Number of Gangs: 2
- Capacity: (2) 20 A Duplex Receptacles, (4) Ports of Communication Devices
- Cover Style : Surface
- Cover Size : 8-1/4 in
- Cover Color : Black
- Cover Finish : Powder Coated
- Suitable For Use With : Carpet, Tile & Wood Floors
- Chicago Approved : No
- Overall Height : 16-3/8 in
|
-
Brochure
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1480748507592.pdf
