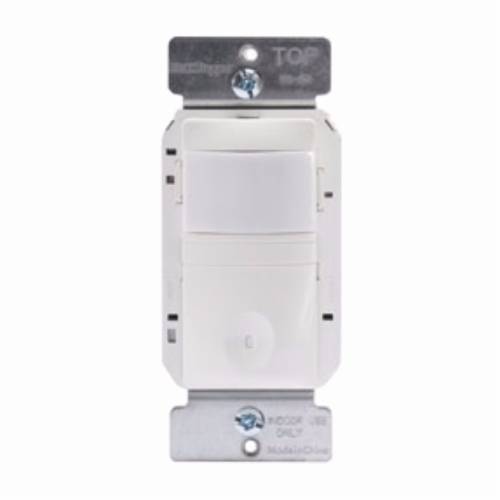

WattStopper®

Wall Switch Sensor

  • loading
  • Manufacturer: Legrand
  • Brand Name: WattStopper®
  • PN: CS-50-W
  • PN: CS-50-W
  • UPC: 754182926923
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

WattStopper® Wall Mount Vacancy Sensor, 2-Wire, 120 VAC, 1000 W, 1/6 hp, Passive Infrared Sensor, 600 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Delay, Fluorescent/Incandescent Lamp, Flying Lead, Automatic OFF/Manual ON Control Output, Wall Mount, 0 to 55 deg C, Plastic, White, 2.67 in L x 1.73 in W x 1.77 in H

  • Manufacturer: Legrand
  • Brand: WattStopper®
  • PN: CS-50-W
  • CX SKU: 878664
  • UPC: 754182926923
  • Type: Line Voltage
  • Series: CS
  • Sensor Type: Wall Switch
  • Switch Type: Single Pole
  • Sensor Technology: Passive Infrared (PIR)
  • Operating Mode: Manual-On Only
  • Load Type: Incandescent, Halogen, ELV, MLV, CFL, LED, Fluorescent
  • Load Rating : 600 W
  • Motor Load : 1/6 hp
  • Voltage Rating : 120 VAC
  • Frequency Rating : 60 Hz
  • Coverage : 600 sq-ft
  • Viewing Angle : 180 deg
  • Time Delay : 30 sec to 30 min
  • Neutral Connection Required : No
  • Temperature Rating : 32 to 131 deg F
  • Material : Plastic
  • Color : White
  • Dimensions : 2.67 in H x 1.73 in W x 1.77 in D
  • pdfBrochure https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1480747453314.pdf
