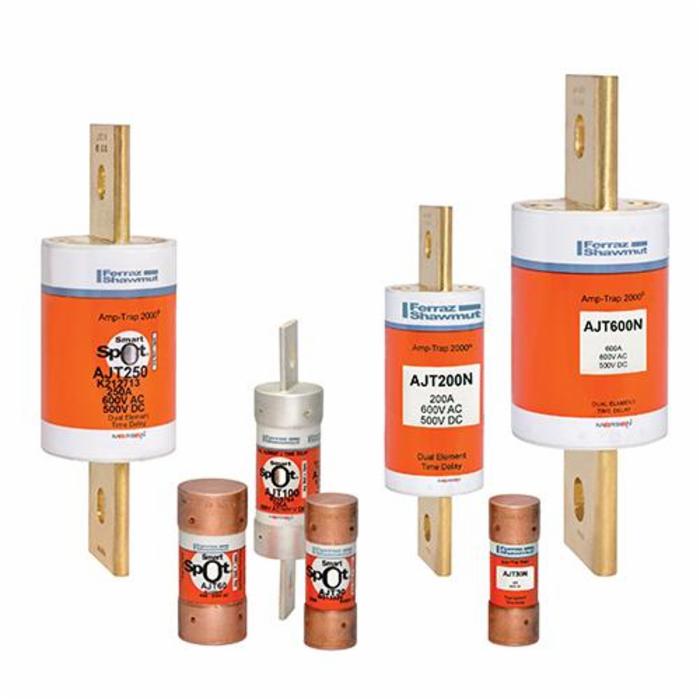

Ferraz Shawmut Amp-Trap® 2000 SmartSpot® Power Fuse, Current Limiting Low Voltage Time Delay, Series: AJT, Indicating, Rejection, 175 A, 600 VAC, 200 kA Interrupt, Class: J, Blade Terminal, Clip Mounting, Cylindrical Body, Dual Element, GMG, 1-5/8 in Dia x 5-3/4 in L Body
-
Manufacturer: Mersen
-
Brand: Ferraz Shawmut
-
PN: AJT175
-
CX SKU: 803626
-
UPC: 782001962579
- Type: Time Delay Fuse
- Series: AJT
- Class: J
- Amperage Rating: 175 A
- Voltage Rating: 600 VAC/500 VDC
- Indication: Indicating
- Rejection/Non-Rejection: Rejection
- Interrupt Rating : 200/100 kA
- Terminal Type : Blade
- Terminal Material : Tin-Plated Copper
- Body Style : Cylindrical
- Element : Dual
- Mounting Type : Clip/Bolt-On
- Material : GMG
- Body Size : 1-5/8 in Dia x 5-3/4 in L
- Application : Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heating, General Loads, Transformers, Control Panels, Circuit Breaker Back-Up, Bus Duct, Load Centers
|
-
Application Guide
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/Ferraz_Shawmut_TR1_10R_Application_Guide.pdf
-
Brochure
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/Ferraz_Shawmut_ATDR1_Brochure.pdf
-
Specification Sheet
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/AJT.pdf
