Pass & Seymour®

Residential Grade Duplex Receptacle

  • loading
  • Manufacturer: Legrand
  • Brand Name: Pass & Seymour®
  • PN: 3232SW
  • PN: 3232SW
  • UPC: 785007323283
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

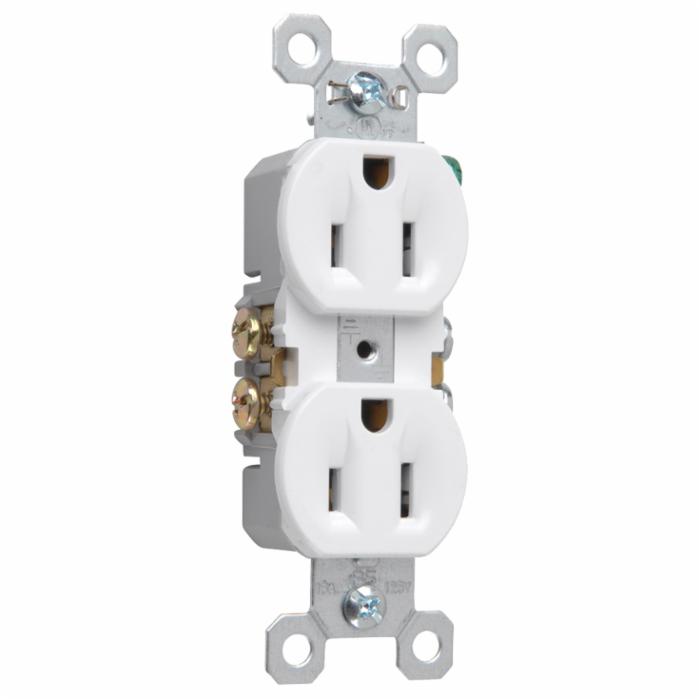

Pass & Seymour® TradeMaster® Straight Blade Receptacle, Duplex Self-Grounding, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA 5-15R, Residential Grade, -30 to 60 deg C, Side Wired/Push Wired Terminal, Thermoplastic, White, 1.32 in L x 0.96 in W x 4.2 in H

  • High impact-resistant thermoplastic construction
  • Extra-long strap
  • Quickloop wire looping aid
  • Long-term blade retention
  • Longer tri-drive screws for easier #12 AWG looping
  • Extra-large circuit break-off tabs
  • Side-access push wire release
  • Ultrasonic welding of face to back body
  • Side wire accepts 12 to 14 AWG solid wire
  • Manufacturer: Legrand
  • Brand: Pass & Seymour®
  • PN: 3232SW
  • CX SKU: 170233
  • UPC: 785007323283
  • Type: Straight Blade Receptacle
  • Style: Traditional Duplex
  • Grade: Residential
  • NEMA Rating: 5-15R
  • Voltage Rating: 125 VAC
  • Amperage Rating: 15 A
  • Horsepower: 1/2 hp
  • Number of Wires : 3
  • Number of Poles : 2
  • Temperature Rating : -30 to 60 deg C
  • Terminal Type : Side Wired
  • Material : Thermoplastic
  • Color : White
  • Dimensions : 3.31 in H x 1.32 in W x 0.96 in D
  • pdfSpecification Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_3232SW_Data_Sheet.pdf
