Leviton®

Residential Grade Duplex Receptacle

  • loading
  • Manufacturer: Leviton Manufacturing
  • Brand Name: Leviton®
  • PN: 5320-SW
  • PN: 5320-SW
  • UPC: 078477829806
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

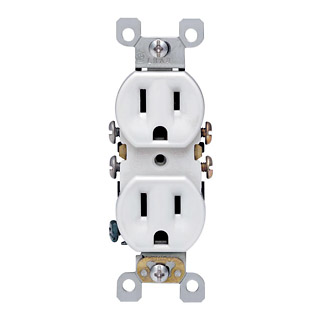

Leviton® Straight Blade Receptacle, Duplex Self-Grounding, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA 5-15R, Commercial Grade, -40 to 60 deg C, Quickwire/Push-In/Side Wired Terminal, Thermoplastic, White, 4.2 in H x 1.33 in W x 19 in D

Leviton's comprehensive Residential Grade Receptacles portfolio includes devices rated for all residential applications in a variety of standard configurations. They are produced in an array of colors in both Decora and traditional styles. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two-circuit conversion.
  • Manufacturer: Leviton Manufacturing
  • Brand: Leviton®
  • PN: 5320-SW
  • CX SKU: 229482
  • UPC: 078477829806
  • Type: Straight Blade Receptacle
  • Style: Traditional Duplex
  • Grade: Residential
  • NEMA Rating: 5-15R
  • Voltage Rating: 125 VAC
  • Amperage Rating: 15 A
  • Horsepower: 1/2 hp
  • Number of Wires : 3
  • Number of Poles : 2
  • Temperature Rating : -40 to 60 deg C
  • Terminal Type : Quickwire Push-In and Side Wired
  • Material : Thermoplastic
  • Color : White
  • Dimensions : 4.2 in H x 1.3 in W x 0.94 in D
