Advance

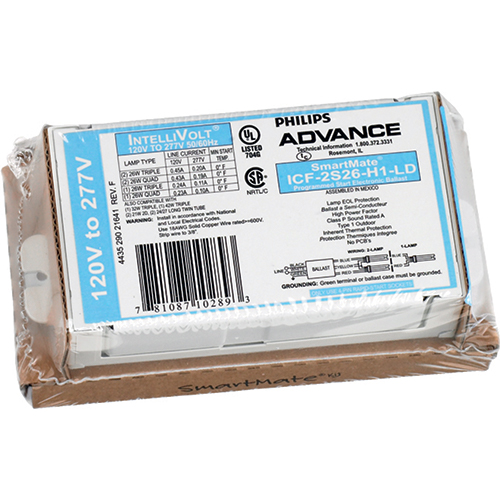

CFL Ballast - 26 W 4-Pin G24q-3 Base

  • loading
  • Manufacturer: Signify
  • Brand Name: Advance
  • PN: ICF-2S26-H1-LD-K
  • PN: ICF-2S26-H1-LD-K
  • UPC: 781087117781
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

Advance SmartMate® Electronic Compact Fluorescent Ballast, Compact Fluorescent Lamp, 26 W Lamp, 4-Pin (GX24q) Lamp Base, 2 Lamp, Programmed Start, 120 to 277 VAC, 0.19 to 0.43 A, Ballast Factor: 1, Power Factor: 0.98, Total Harmonic Distortion: 10%, 0 deg F Minimum Starting Temperature, 4.98 in L x 2.4 in W x 0.98 in H

  • Energy efficient design and compact, lightweight housing
  • Kit comes complete with wires, mounting plates and hardware
  • Operates 1 or 2 40 Watt quad/triple tube 4-pin compact fluorescent lamps
  • Manufacturer: Signify
  • Brand: Advance
  • PN: ICF-2S26-H1-LD-K
  • CX SKU: 362844
  • UPC: 781087117781
  • Type: Electronic Compact Fluorescent Ballast
  • Series: SmartMate®
  • Ballast Start Type: Programmed
  • Ballast Lamp Type: Compact Fluorescent
  • Maximum Number of Lamps: 2
  • Maximum Lamp Wattage: 26 W
  • Lamp Base Type: 4-Pin (GX24q)
  • Ballast Voltage Rating : 120 to 277 VAC
  • Ballast Factor : 1
  • Power Factor : 0.98
  • Total Harmonic Distortion : 10%
  • Amperage Rating : 0.19 to 0.43 A
  • Minimum Starting Temperature : 0 deg F
  • Dimensions : 4.98 in L x 2.4 in W x 0.98 in H
  • pdfSpecification Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1480733326485.pdf
