Leviton®

15A 125V, NEMA L5-15 Locking Devices

  • loading
  • Manufacturer: Leviton Manufacturing
  • Brand Name: Leviton®
  • PN: 4729-C
  • PN: 4729-C
  • UPC: 078477795521
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • Usually Ships in 3-5 Business Days
  • loading

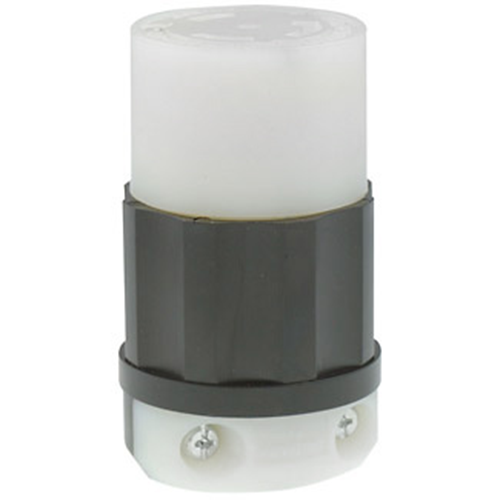

Leviton® Black & White® Locking Connector, 1 Phase Grounding, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA L5-15R, Industrial Grade, 0.24 to 0.7 in Cord Dia, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 1.53 in Dia x 2.76 in H

  • Super tough nylon body resists damage from severe impact, abrasion and chemicals
  • Ergonomic, fluted body design with radial grip ridge is ideal for gripping, turning and pulling
  • Cord clamp does not have to be disassembled from body for wiring - accepts all wire mesh connection strain reliefs
  • One-piece, rivetless 0.035 in thick brass connector contacts and solid brass plug blades provide maximum conductivity and long service life
  • Grounding
  • 1 phase
  • Cable mounting
  • UL94 V-2 flammability
  • Impact modified nylon
  • 18 - 10 AWG
  • Manufacturer: Leviton Manufacturing
  • Brand: Leviton®
  • PN: 4729-C
  • CX SKU: 228443
  • UPC: 078477795521
  • Type : Locking Connector
  • Series : Black & White®
  • NEMA Rating : L5-15R
  • Voltage Rating : 125 VAC
  • Amperage Rating : 15 A
  • Horsepower : 1/2 hp
  • Number of Poles : 2
  • Number of Wires : 3
  • Cord Diameter : 0.240 to 0.700 in
  • Grade : Industrial
  • Temperature Rating : -40 to 60 deg C
  • Terminal Type : Screw
  • Material : Nylon
  • Color : Black/White
  • pdfMaterial Safety Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511873511890.pdf
  • pdfSpecification Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/Leviton_4729_C_Datasheet.pdf
  • linkVideo https://youtu.be/H3ZhlBYwRZw?rel=0
