Leviton® T5020-W | Connexion

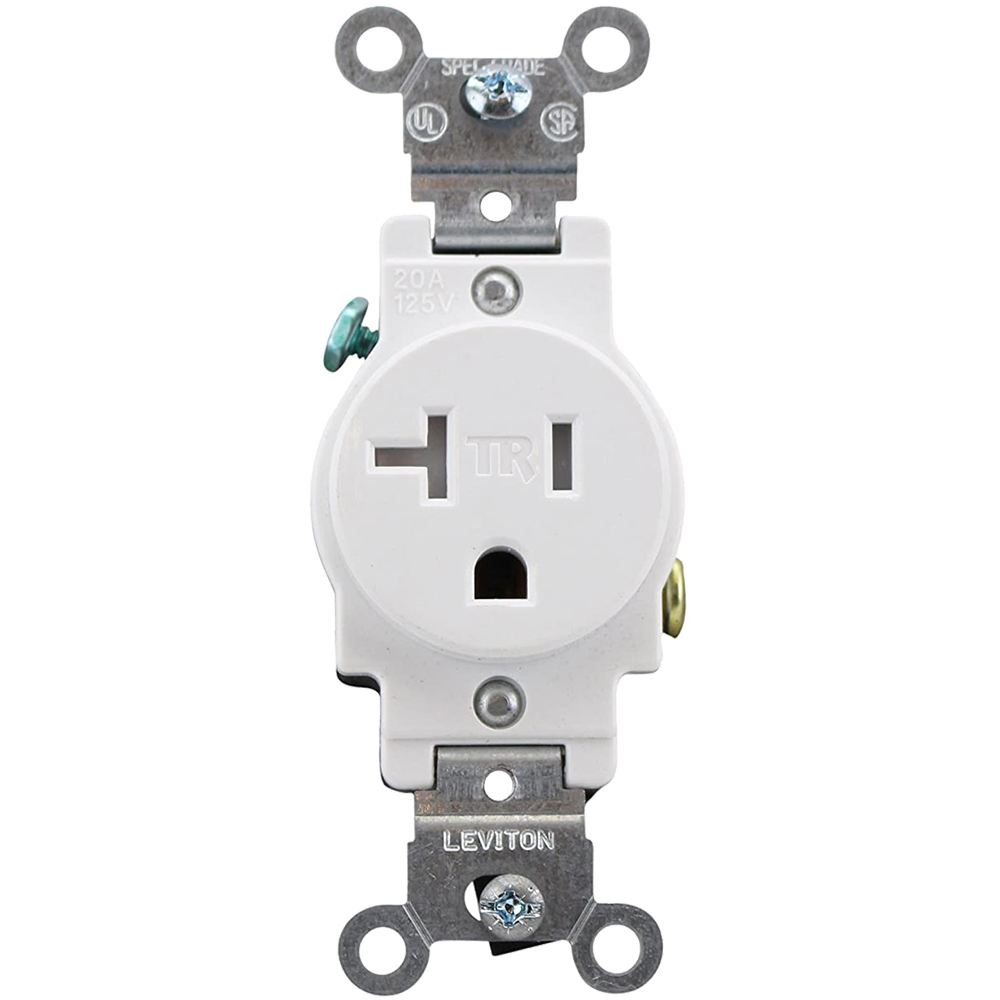

Leviton® T5020-W 857116

Leviton®

Commercial Spec Grade Tamper-Resistant Single Receptacle

  • loading
  • Manufacturer: Leviton Manufacturing
  • Brand Name: Leviton®
  • PN: T5020-W
  • PN: T5020-W
  • UPC: 078477381809
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

Leviton® Straight Blade Receptacle, Duplex Self-Grounding Single Tamper-Resistant, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial Grade, -40 to 60 deg C, Back and Side Wired Terminal, Thermoplastic, Nylon, White, 1.31 in L x 16 in W x 4.06 in H

Heavy-duty brass power contacts for conductivity and plug retention Captive mounting screws for fast installation where applicable
  • Manufacturer: Leviton Manufacturing
  • Brand: Leviton®
  • PN: T5020-W
  • CX SKU: 857116
  • UPC: 078477381809
  • Type: Straight Blade Receptacle
  • Style: Single
  • Grade: Commercial Specification
  • NEMA Rating: 5-20R
  • Voltage Rating: 125 VAC
  • Amperage Rating: 20 A
  • Horsepower: 1 hp
  • Number of Wires : 3
  • Number of Poles : 2
  • Temperature Rating : -40 to 60 deg C
  • Terminal Type : Back and Side Wired
  • Material : Nylon
  • Color : White
  • Dimensions : 4.06 in H x 1.31 in W x 1.06 in D
  • pdfMaterial Safety Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/QuickPort_41106_RB6_SDS.pdf
  • pdfSpecification Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/Leviton_T5020_W_Datasheet.pdf
