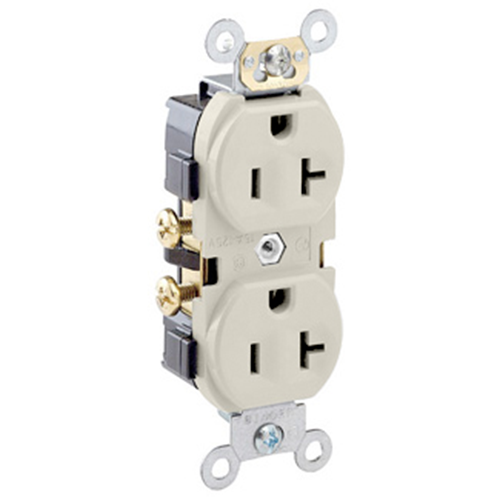

Leviton® Straight Blade Receptacle, 1 Phase Duplex Indented Face Self-Grounding, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial Grade, -40 to 60 deg C, Side Wired Terminal, Thermoplastic, Light Almond, 4.06 in H x 1.53 in W x 1.08 in D
Leviton's line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
-
Manufacturer: Leviton Manufacturing
-
Brand: Leviton®
-
PN: CR20-T
-
CX SKU: 491775
-
UPC: 078477273036
- Type: Straight Blade Receptacle
- Style: Traditional Duplex
- Grade: Commercial Specification
- NEMA Rating: 5-20R
- Voltage Rating: 125 VAC
- Amperage Rating: 20 A
- Horsepower: 1 hp
- Number of Wires : 3
- Number of Poles : 2
- Temperature Rating : -40 to 60 deg C
- Terminal Type : Side Wired
- Material : Thermoplastic
- Color : Light Almond
- Dimensions : 4.06 in H x 1.53 in W x 1.08 in D
|
