Leviton® CR15-W | Connexion
Leviton® CR15-W 229010

Leviton®

Commercial Spec Grade Duplex Receptacle

  • loading
  • Manufacturer: Leviton Manufacturing
  • Brand Name: Leviton®
  • PN: CR15-W
  • PN: CR15-W
  • UPC: 078477815205
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • Usually Ships in 3-5 Business Days
  • loading

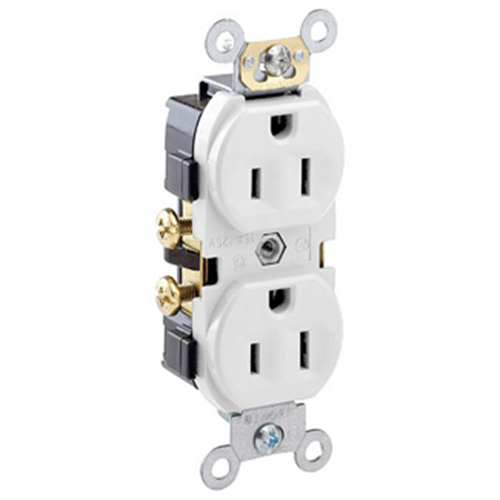

Leviton® Straight Blade Receptacle, 1 Phase Duplex Indented Face Self-Grounding, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial Grade, -40 to 60 deg C, Side Wired Terminal, Thermoplastic, White, 4.06 in H x 1.56 in W x 1.07 in D

Leviton's line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
  • Manufacturer: Leviton Manufacturing
  • Brand: Leviton®
  • PN: CR15-W
  • CX SKU: 229010
  • UPC: 078477815205
  • Type: Straight Blade Receptacle
  • Style: Traditional Duplex
  • Grade: Commercial Specification
  • NEMA Rating: 5-15R
  • Voltage Rating: 125 VAC
  • Amperage Rating: 15 A
  • Horsepower: 1/2 hp
  • Number of Wires : 3
  • Number of Poles : 2
  • Temperature Rating : -40 to 60 deg C
  • Terminal Type : Side Wired
  • Material : Thermoplastic
  • Color : White
  • Dimensions : 4.06 in H x 1.56 in W x 1.07 in D
  • pdfMaterial Safety Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/QuickPort_41106_RB6_SDS.pdf
  • pdfSpecification Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/Leviton_CR15_W_Datasheet.pdf
