Leviton® TCR20-W | Connexion

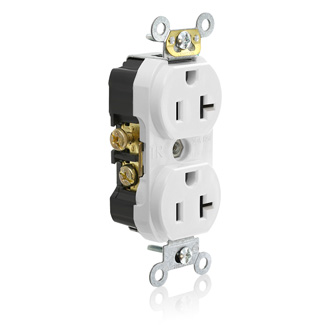

Leviton® TCR20-W 871649

Leviton®

Commercial Spec Grade Tamper-Resistant Duplex Receptacle

  • loading
  • Manufacturer: Leviton Manufacturing
  • Brand Name: Leviton®
  • PN: TCR20-W
  • PN: TCR20-W
  • UPC: 078477655429
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

Leviton® Straight Blade Receptacle, Duplex Self-Grounding Tamper and Weather-Resistant, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20R, Commercial Grade, -40 to 60 deg C, Thermoplastic, White, 1.36 in L x 1.2 in W x 4.06 in H

Tamper resistant receptacles are manufactured with a shutter mechanism that is designed to block access to the electrical contacts unless a normal two or three-prong plug is evenly inserted into the outlet. When using tamper resistant receptacles, please be certain that the plug is fully inserted into the receptacle to ensure a proper and safe connection.
  • Manufacturer: Leviton Manufacturing
  • Brand: Leviton®
  • PN: TCR20-W
  • CX SKU: 871649
  • UPC: 078477655429
  • Type: Straight Blade Receptacle
  • Style: Traditional Duplex
  • Grade: Commercial Specification
  • NEMA Rating: 5-20R
  • Voltage Rating: 125 VAC
  • Amperage Rating: 20 A
  • Horsepower: 1 hp
  • Number of Wires : 3
  • Number of Poles : 2
  • Temperature Rating : -40 to 60 deg C
  • Terminal Type : Side Wired
  • Material : Thermoplastic
  • Color : White
  • Dimensions : 4.06 in H x 1.36 in W x 1.20 in D
  • pdfMaterial Safety Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511873511890.pdf
  • pdfSpecification Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/Leviton_TCR20-W_Data_Sheet.pdf
