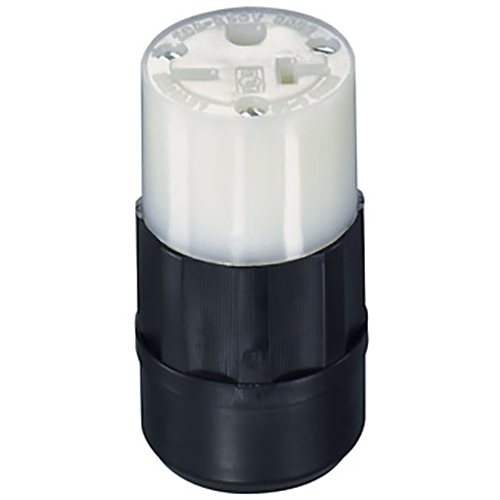

Leviton® Black & White® Straight Blade Connector, Cable Mount Grounding, 250 VAC, 20 A, 2 Poles, 3 Wires, NEMA 6-20R, Industrial Grade, 0.25 to 0.685 in Cord Dia, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 1.49 in Dia x 2.76 in H
- External Cord Grip Utilizes Deep Triple Drive Steel Screws That Are Backed Out and Positioned Inside Shrouded Pockets
- External Clamps Accept Wire Mesh Grips
- Catalog and NEMA Numbers Printed on Cord Clamp
- Positive Contact Plate Bundles Stranded Wire Maximizing Surface Contact Resulting in Improved Termination
- NEMA Configuration and Device Rating Are Molded on Front of Device to Assist With Identification
- Dead Front Solid Containment Barrier Prevents Accidental Contact With Internal Parts
- Wiring Module Keyed to Body For Easy Assembly and a Tight Fit
- No. 8-32 Triple-Drive Brass Terminal Screws
- Three U-Type Fast-Threading Triple-Drive Steel Screws Secure Wiring Module to Body
-
Manufacturer: Leviton Manufacturing
-
Brand: Leviton®
-
PN: 5469-C
-
CX SKU: 228487
-
UPC: 078477796047
- Type: Straight Blade Connector
- Series: Black & White®
- NEMA Rating: 6-20R
- Voltage Rating: 250 VAC
- Amperage Rating: 20 A
- Number of Poles: 2
- Number of Wires: 3
- Grade : Industrial
- Cord Diameter : 0.245 to 0.700 in
- Temperature Rating : -40 to 60 deg C
- Terminal Type : Screw
- Material : Nylon
- Color : Black/White
- Dimensions : 1.49 in Dia x 2.76 in H
|
-
