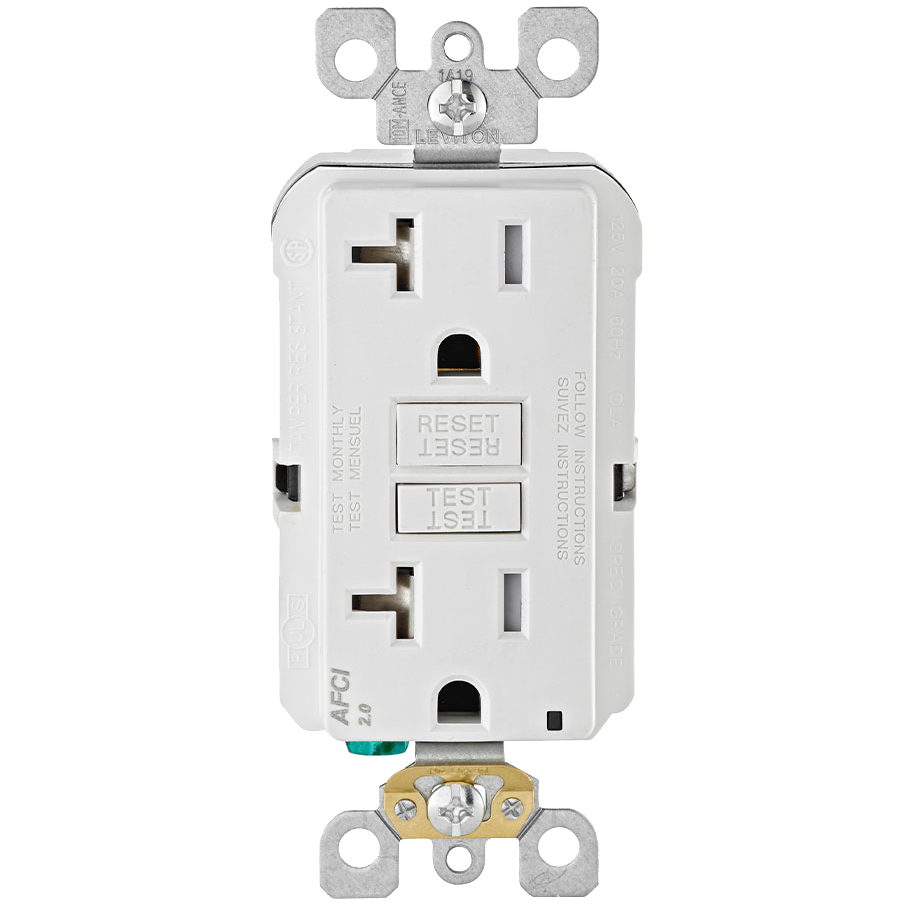

Leviton® SmartlockPro® AFCI Receptacle, Duplex Outlet Tamper-Resistant, 125 VAC, 20 A, 1 hp, 60 Hz, 2 Poles, 3 Wires, NEMA 5-20R, Commercial/Residential Grade, -35 to 66 deg C, Back or Side Wired Terminal, Polycarbonate, White, 4.21 in H x 1.68 in W x 1.27 in D
Features and Benefits:
- Use of TEST and RESET Buttons is Similar to Traditional GFCI Receptacles of Which Consumers Have Become Familiar, Translating Into Greater Acceptance of the Technology and a More User-Friendly Platform
- Meets or Exceeds UL Requirements For Tripping Time on Both Series and Parallel Arcs
- Device Design Reduces Nuisance Tripping
- Impact-Resistant Thermoplastic Cover and Body
- Superior Resistance to Electrical Surges and Over-Voltages
- Expanded Wiring Options With Nine Back-Wire Holes (2 For Each Line and Load Connection Plus 1 For Ground With an Internal Clamp)
- Silver Alloy Contacts
- Compatible With All Decora® Devices and Wallplates; Available in Select Colors

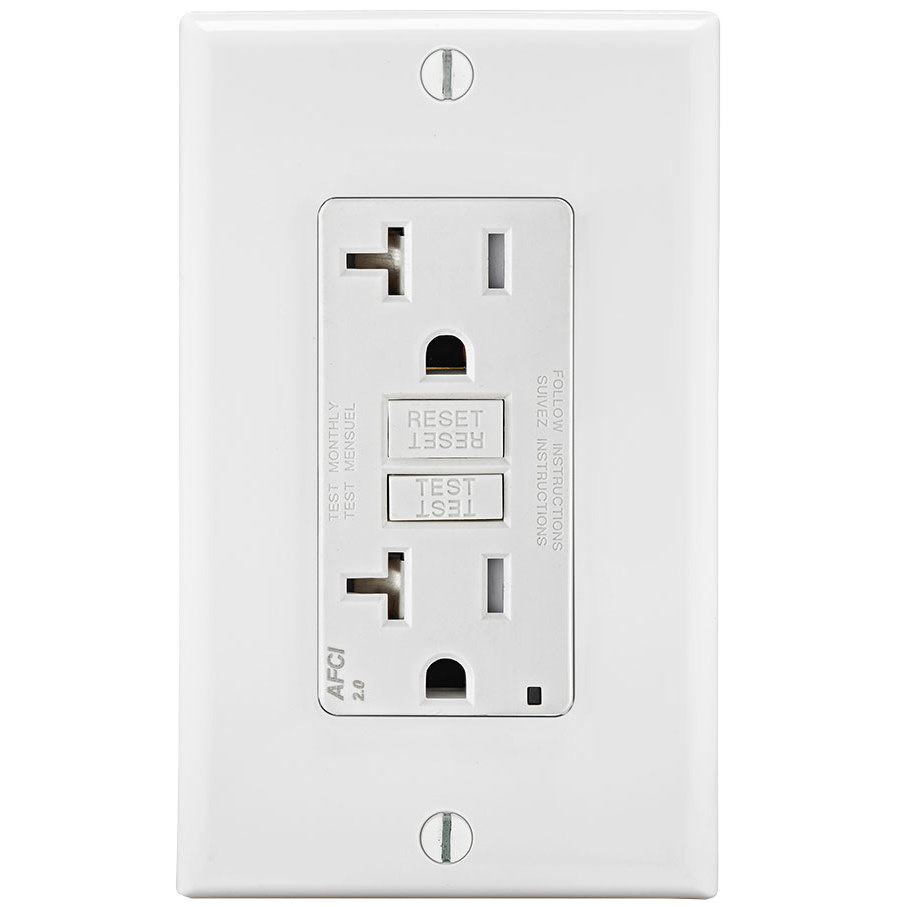

- Packed With Coordinating Wallplate
- Tamper-Resistant to Comply With the Latest NEC Requirements For Tamper-Resistant Receptacles in Residences and Childcare Facilities
-
Manufacturer: Leviton Manufacturing
-
Brand: Leviton®
-
PN: AFTR2-W
-
CX SKU: 857515
-
UPC: 078477574980
- Type: Duplex AFCI Receptacle
- Voltage Rating: 125 VAC
- Amperage Rating: 20 A
- Horsepower: 1 hp
- Number of Poles: 2
- Number of Wires: 3
- NEMA Rating: 5-20R
- Temperature Rating : -35 to 66 deg C
- Terminal Type : Back and Side Wire
- Material : Polycarbonate
- Dimensions : 4.21 in H x 1.68 in W x 1.27 in D
|
-
Material Safety Sheet
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1479240741883.pdf
-
Specification Sheet
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1480758084319.pdf
