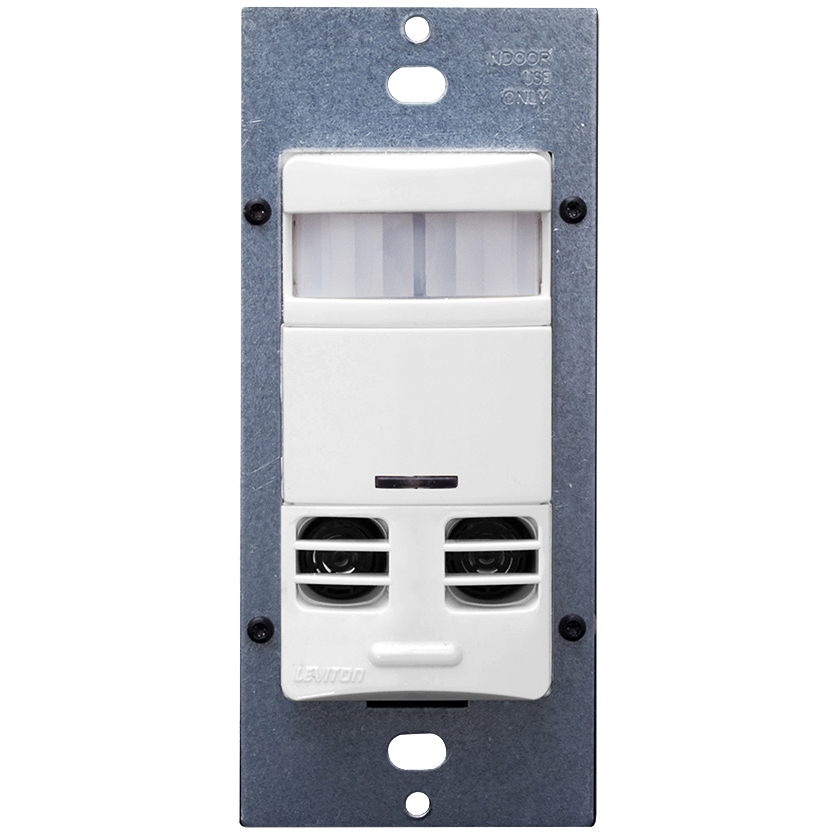

Leviton® Decora® Occupancy Sensor, 1 Pole Field Configurable Self Adjusting, 120/230/277/347 VAC, 390/190/270/350 mW, Multi-Technology/PIR/Ultrasonic Sensor, 2400 sq-ft Coverage, 180 deg Viewing, 30 sec to 30 min Delay, Fluorescent/Incandescent/Tungsten Lamp, 50/60 Hz Response, Manual ON/Automatic OFF Control Output, Wall Mount, 0 to 40 deg C, White, 46 in H x 1.75 in W x 1.85 in D
-
Manufacturer: Leviton Manufacturing
-
Brand: Leviton®
-
PN: OSSMT-MDW
-
CX SKU: 517042
-
UPC: 078477279373
- Type: Line Voltage
- Series: OSSMT-MD
- Sensor Type: Wall Switch
- Switch Type: Single Pole
- Sensor Technology: Dual Technology (PIR/Ultrasonic)
- Operating Mode: Auto-On (Default) or Manual-On
- Load Type: Fluorescent/Incandescent/Tungsten
- Load Rating : 1200/2700 VA Fluorescent/800 W Incandescent
- Motor Load : 1/4 hp
- Voltage Rating : 120/277 VAC
- Frequency Rating : 50/60 Hz
- Coverage : 2400 sq-ft
- Viewing Angle : 180 deg
- Time Delay : 30 sec to 30 min
- Neutral Connection Required : Yes
- Temperature Rating : 32 to 122 deg F
- Material : Plastic
- Color : White
- Dimensions : 4.06 in H x 1.75 in W x 1.85 in D
|
-
