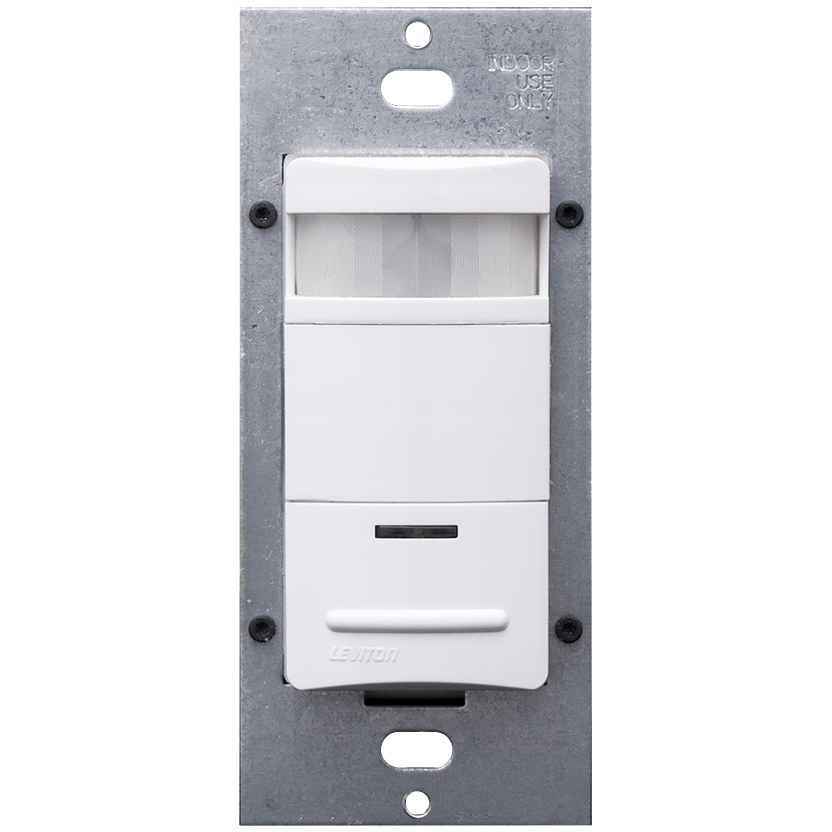

Leviton® Decora® Occupancy Sensor, 1 Pole Low-Profile Photocell Controlled Single Relay, 120/230/277 VAC, 100/280 mW, PIR Sensor, 2100 sq-ft Coverage, 180 deg Viewing, 30 sec to 20 min Delay, Fluorescent/Incandescent Lamp, 50/60 Hz Response, Manual ON/Automatic OFF Control Output, Wall Mount, 0 to 50 deg C, White, 46 in H x 1.75 in W x 1.83 in D
- Exclusive Walk-Through sensing increases energy savings by shutting lights within 2-1/2 minutes after momentary occupancy
- Delay- Off time settings: (10, 20 and 30 Minutes) compensates for real-time occupancy patterns
-
Manufacturer: Leviton Manufacturing
-
Brand: Leviton®
-
PN: ODS15-IDW
-
CX SKU: 225020
-
UPC: 078477010228
- Type: Line Voltage
- Series: ODS15-ID
- Sensor Type: Wall Switch
- Switch Type: Single Pole
- Sensor Technology: Passive Infrared (PIR)
- Operating Mode: Auto-On (Default) or Manual-On
- Load Type: Fluorescent/Incandescent
- Load Rating : 1800/4000 VA Fluorescent/1800 W Incandescent
- Motor Load : 1/4 hp
- Voltage Rating : 120/277 VAC
- Frequency Rating : 50/60 Hz
- Coverage : 2100 sq-ft
- Viewing Angle : 180 deg
- Time Delay : 30 sec to 20 min
- Neutral Connection Required : No
- Temperature Rating : 32 to 122 deg F
- Material : Plastic
- Color : White
- Dimensions : 4.06 in H x 1.75 in W x 1.85 in D
|
