Leviton® ODS10-IDI | Connexion
Leviton® ODS10-IDI 225017

Leviton®

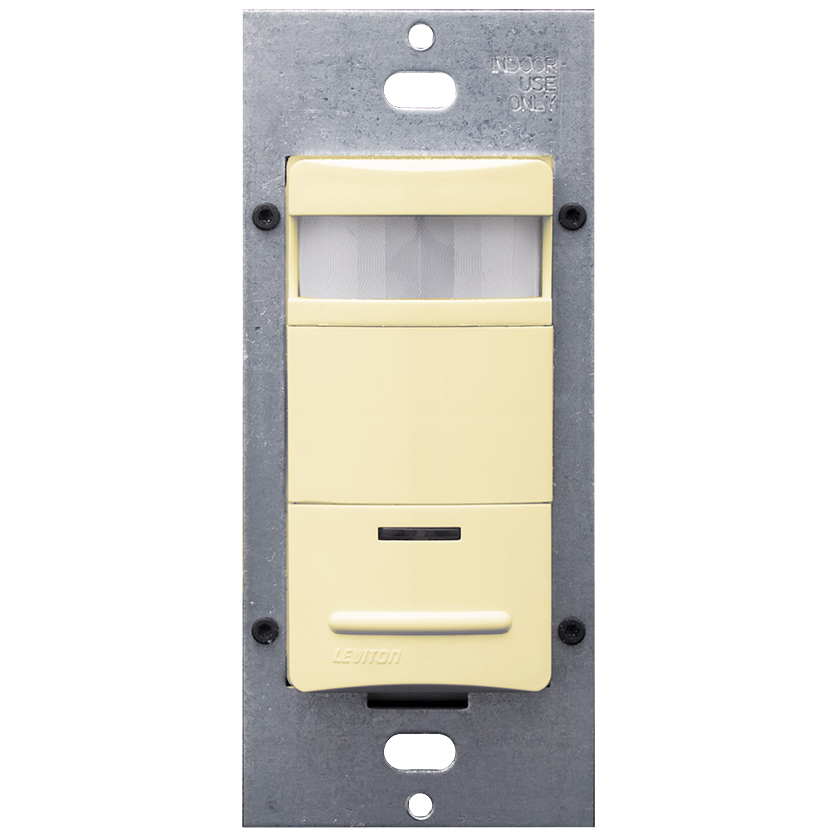

Decora® Wall Switch Sensor

  • loading
  • Manufacturer Package Size: Each
  • Manufacturer: Leviton Manufacturing
  • Brand Name: Leviton®
  • PN: ODS10-IDI
  • PN: ODS10-IDI
  • UPC: 078477010198
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

Leviton® Decora® Occupancy Sensor, 1 Pole, 120/230/277 VAC, 100/250 mW, PIR Sensor, 2100 sq-ft Coverage, 180 deg Viewing, 30 sec to 30 min Delay, Fluorescent/Incandescent Lamp, 50/60 Hz Response, Manual ON/Automatic OFF Control Output, Wall Mount, 0 to 50 deg C, Ivory, 46 in H x 1.75 in W x 1.85 in D

  • Passive infrared
  • 2100 Sq. Ft. coverage
  • Single-Pole
  • Delay- Off time settings: 10, 20 and 30 Minutes with 30-second test mode
  • Photocell with ambient light override prevents these devices from switching lights ON when there is ample natural sunlight
  • Manufacturer: Leviton Manufacturing
  • Brand: Leviton®
  • PN: ODS10-IDI
  • CX SKU: 225017
  • UPC: 078477010198
  • Type: Line Voltage
  • Series: ODS10-ID
  • Sensor Type: Wall Switch
  • Switch Type: Single Pole
  • Sensor Technology: Passive Infrared (PIR)
  • Operating Mode: Auto-On (Default) or Manual-On
  • Load Type: Fluorescent/Incandescent
  • Load Rating : 1200/2700 VA Fluorescent/800 W Incandescent
  • Motor Load : 1/4 hp
  • Voltage Rating : 120/277 VAC
  • Frequency Rating : 50/60 Hz
  • Coverage : 2100 sq-ft
  • Viewing Angle : 180 deg
  • Time Delay : 30 sec to 30 min
  • Neutral Connection Required : No
  • Temperature Rating : 32 to 122 deg F
  • Material : Plastic
  • Color : Ivory
  • Dimensions : 4.06 in H x 1.75 in W x 1.85 in D
