Leviton® 2430 | Connexion
Leviton® 2430 228847

Leviton®

20A 3-Phase 480V, NEMA L16-20 Locking Devices

  • loading
  • Manufacturer Package Size: Each
  • Manufacturer: Leviton Manufacturing
  • Brand Name: Leviton®
  • PN: 2430
  • PN: 2430
  • UPC: 078477809365
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

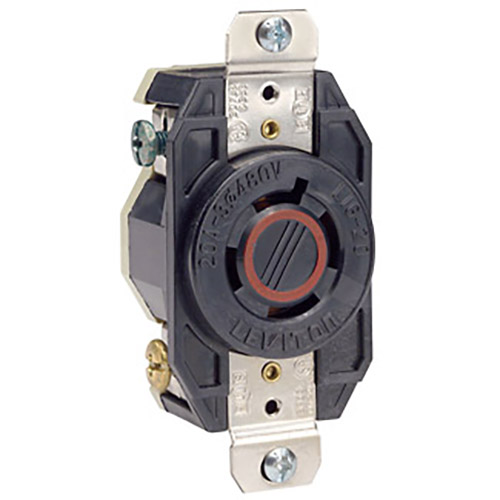

Leviton® V-0-Max™ Locking Receptacle, 3 Phase Y Grounding, 480 VAC, 20 A, 5 hp, 3 Poles, 4 Wires, NEMA L16-20R, Industrial Grade, -40 to 60 deg C, Back or Side Wired Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D

Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
  • Manufacturer: Leviton Manufacturing
  • Brand: Leviton®
  • PN: 2430
  • CX SKU: 228847
  • UPC: 078477809365
  • Type: Locking Receptacle
  • Series: Black & White® V-O-Max®
  • NEMA Rating: L16-20R
  • Voltage Rating: 480 VAC
  • Amperage Rating: 20 A
  • Horsepower: 5 hp
  • Number of Poles: 3
  • Number of Wires : 4
  • Isolated Ground : No
  • Grade : Industrial
  • Temperature Rating : -40 to 60 deg C
  • Terminal Type : Back or Side Wired
  • Material : Valox
  • Color : Black
