Leviton® 2320-IG | Connexion
Leviton® 2320-IG 228558

Leviton®

20A 250V, NEMA L6-20 Locking Devices

  • loading
  • Manufacturer Package Size: Each
  • Manufacturer: Leviton Manufacturing
  • Brand Name: Leviton®
  • PN: 2320-IG
  • PN: 2320-IG
  • UPC: 078477801215
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

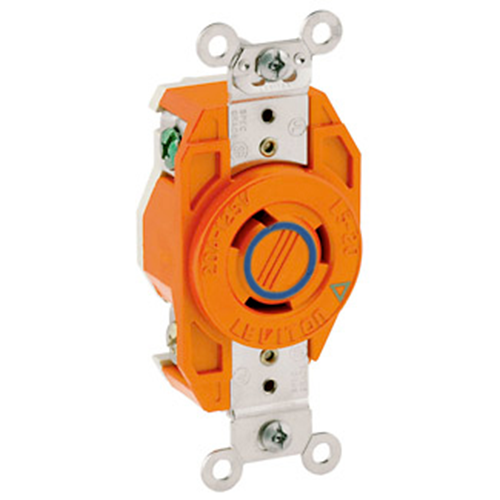

Leviton® V-0-Max™ Locking Receptacle, Isolated Grounding, 250 VAC, 20 A, 2 hp, 2 Poles, 3 Wires, NEMA L6-20R, Industrial Grade, -40 to 60 deg C, Back or Side Wired Terminal, Polybutylene Terephthalate, Orange, 3.63 in H x 1.69 in W x 1.31 in D

  • Manufacturer: Leviton Manufacturing
  • Brand: Leviton®
  • PN: 2320-IG
  • CX SKU: 228558
  • UPC: 078477801215
  • Type: Locking Receptacle
  • Series: Black & White® V-O-Max®
  • NEMA Rating: L6-20R
  • Voltage Rating: 250 VAC
  • Amperage Rating: 20 A
  • Horsepower: 2 hp
  • Number of Poles: 2
  • Number of Wires : 3
  • Isolated Ground : Yes
  • Grade : Industrial
  • Temperature Rating : -40 to 60 deg C
  • Terminal Type : Back or Side Wired
  • Material : Valox
  • Color : Orange
