Leviton® 16352-T | Connexion
Leviton® 16352-T 516012

Leviton®

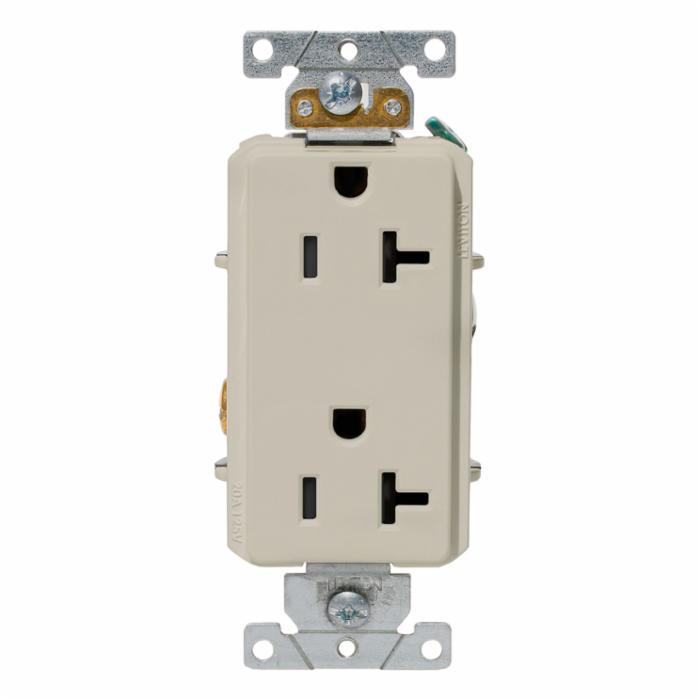

Heavy-Duty Industrial Spec Grade Decorator Duplex Receptacle

  • loading
  • Manufacturer: Leviton Manufacturing
  • Brand Name: Leviton®
  • PN: 16352-T
  • PN: 16352-T
  • UPC: 078477272961
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • loading

Leviton® Decora Plus™ Straight Blade Duplex Receptacle, Heavy Duty Self Grounding, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA, Industrial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back and Side Wired Terminal, Thermoplastic, Light Almond, 4.06 in H x 1.31 in W x 1.14 in D

Leviton's line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

  • Manufacturer: Leviton Manufacturing
  • Brand: Leviton®
  • PN: 16352-T
  • CX SKU: 516012
  • UPC: 078477272961
  • Type: Straight Blade Receptacle
  • Style: Decorator Duplex
  • Series: Decora Plus™
  • Grade: Industrial
  • NEMA Rating: 5-20R
  • Voltage Rating: 125 VAC
  • Amperage Rating: 20 A
  • Horsepower : 1 hp
  • Number of Poles : 2
  • Number of Wires : 3
  • Temperature Rating : -40 to 60 deg C
  • Terminal Type : Back and Side Wired
  • Material : Thermoplastic
  • Color : Light Almond
  • Dimensions : 4.06 in H x 1.31 in W x 1.14 in D
  • pdfMaterial Safety Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/QuickPort_41106_RB6_SDS.pdf
  • pdfSpecification Sheet https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/Decora_16352_T_Datasheet.pdf
  • videoVideo https://www.youtube.com/watch?v=vkM-Ppc9l-s&feature=youtu.be&rel=0
