Lutron® MS-Z101-WH | Connexion
Lutron® MS-Z101-WH 889222

Lutron®

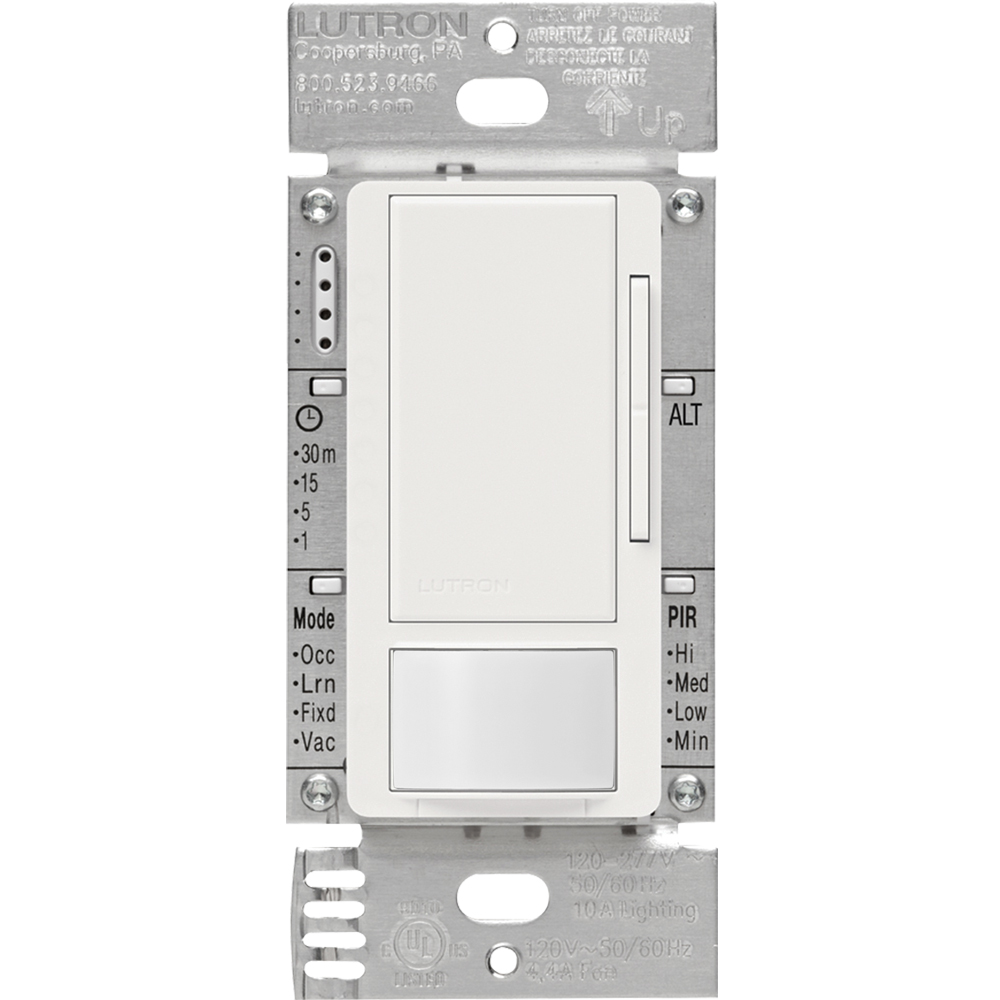

Maestro® Dimmer Switch Sensor

  • loading
  • Manufacturer: Lutron Electronics
  • Brand Name: Lutron®
  • PN: MS-Z101-WH
  • PN: MS-Z101-WH
  • UPC: 784276099844
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Qty
  • Usually Ships in 3-4 Business Days
  • loading

Lutron® Maestro® Dimmer Sensor Switch, Multi-Location, Series: MS-Z101, 120 to 277 VAC, 50 mA, 50/60 Hz, 1 Pole, Fluorescent/LED Lamp, Pre-Set Start, Operation Mode: On/Off, Tap, NEMA 410, Wall Mount, 0 to 40 deg C, Plastic/Steel, White, 4.69 in H x 2.94 in W x 0.3 in D

  • On a single-tap, lights fade ON or OFF
  • On a double-tap, lights go to full ON
  • Dimensions: 4-11/16 H x 2-15/16 W x 1-9/16 D inches
  • Light levels can be fine-tuned by pressing and holding the dimming rocker until the desired light level is reached
  • Off warning fades lights to off over a period of 10 seconds
  • Indoor Use Only
  • Manufacturer: Lutron Electronics
  • Brand: Lutron®
  • PN: MS-Z101-WH
  • CX SKU: 889222
  • UPC: 784276099844
  • Type: Line Voltage
  • Series: Maestro®
  • Sensor Type: Wall Switch
  • Switch Type: Single Pole, Multi-Location
  • Sensor Technology: Passive Infrared (PIR)
  • Operating Mode: Auto-On (Default) or Manual-On
  • Load Type: 0 to 10V Fluorescent Ballasts and 0 to 10V LED Drivers
  • Load Rating : 8 A
  • Motor Load : 1/6 hp
  • Voltage Rating : 120/277 VAC
  • Frequency Rating : 50/60 Hz
  • Coverage : 900 sq-ft
  • Viewing Angle : 180 deg
  • Time Delay : 1 to 30 min
  • Neutral Connection Required : Yes
  • Temperature Rating : 32 to 104 deg F
  • Material : Plastic
  • Color : White
  • Dimensions : 4-11/16 in H x 2-15/16 in W x 1-1/8 in D
