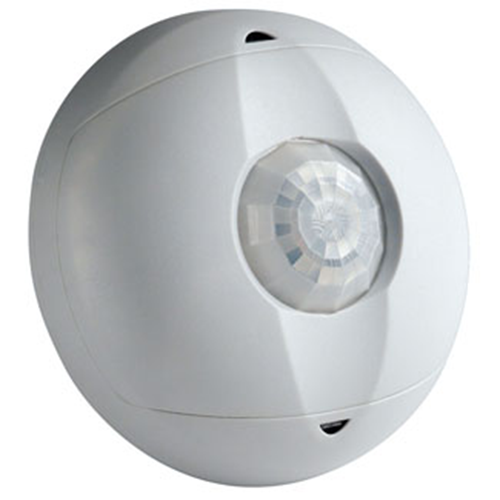

LevitonĀ® Occupancy Sensor, Low Voltage, 24 VDC, 10 mA, PIR Sensor, 1500 sq-ft Coverage, 360 deg Viewing, 30 sec to 30 min Delay, LED Lamp, Wired, Automatic ON/OFF Control Output, Ceiling Mount, 0 to 40 deg C, Plastic, Off-White, 4.2 in Dia x 1.55 in D
- All-digital & microprocessor based Passive Infrared
- Ceiling Mount motion sensor
- Self-calibrating sensitivity and timer allow the installer to install & forget
- Typical applications include copy room, open office, storage room and lounge
-
Manufacturer: Leviton Manufacturing
-
Brand: Leviton®
-
PN: OSC15-I0W
-
CX SKU: 480097
-
UPC: 078477180587
- Type: Low Voltage
- Series: OSC
- Sensor Type: Occupancy
- Sensor Technology: Passive Infrared (PIR)
- Mounting Type: Ceiling
- Coverage: 1500 sq-ft
- Voltage Rating: 24 VDC
- Viewing Angle : 360 deg
- Time Delay : 30 sec to 30 min
- Lamp Type : LED
- Material : Plastic
- Color : White
- Dimensions : 4.2 in Dia x 1.57 in D
|
-
Material Safety Sheet
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/QuickPort_41106_RB6_SDS.pdf
-
Specification Sheet
https://www.cxconnect.com//ASSETS/DOCUMENTS/ITEMS/EN/OSC15-I0W.pdf
-
Video
https://www.youtube.com/watch?v=jK48BrNhHBw&feature=youtu.be&rel=0
